Investment Casting Workspace Highlights

Full process modeling for investment casting processes
Streamlined shell creation from casting pattern
Advanced radiation model captures full radiative heat transfer between shell surfaces
Advanced motion controls include Bridgman, ladle and spin dynamics

Workspace Overview

The Investment Casting Workspace provides investment casters with an easy-to-use tool for simulating all aspects of investment casting, including shell generation, filling, solidification (with either static or moving Bridgman shell molds), and cooling. A shell mold creation tool is provided for quick and reliable shell geometry creation, while radiation and view factor models accurately capture radiative heat transfer between different parts of the shell. For directional solidification, a moving oven with a hot upper section separated from a cooler lower section captures the Bridgman process. Melt surface evolution as well as mold motion, filling detail and solidification patterns are readily assessed through intuitive post-processing tools, allowing for process modifications to be implemented with confidence.

Investment Casting Playlist

7 Videos

Investment Casting Filling Analysis | FLOW-3D CAST

0:10

Turbine Blade Investment Casting Simulation | FLOW-3D CAST

0:21

Investment Casting Filling Comparison | FLOW-3D CAST

0:19

Investment Casting Solidification Comparison | FLOW-3D CAST

0:24

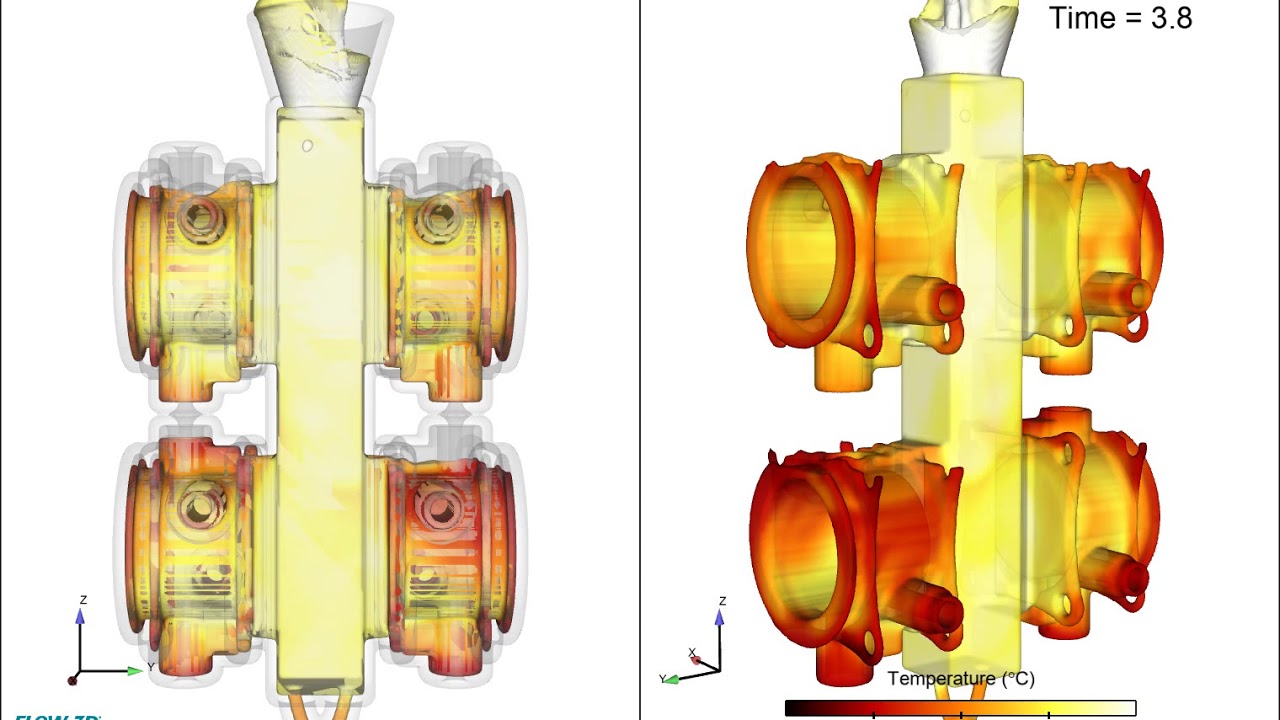

FLOW-3D CAST Investment Casting Process Workspace fill example

0:27

FLOW-3D CAST Investment Casting Process Workspace solidification and porosity example

0:20

Multi Cavity Investment Casting | FLOW-3D CAST

0:18

Description

Description

This FLOW-3D CAST filling simulation of an investment casting is used to assess the oxide formation, air entrainment, and heat transfer to the shell. For more information about the Investment Casting Workspace, visit https://www.flow3d.com/products/flow-3d-cast/investment-casting-workspace/

Processes modeled

Filling

Solidification – Static and Bridgman

Cooling

Shell mold creation

Thermal mold modeling

Full radiation modeling with view factors

Convection and conduction heat transfer

Multi-block meshing

Extraordinary accuracy in filling simulations

Gas/bubble entrapment

Surface oxide calculation

RNG and LES turbulence models

Ladle Pouring

Advanced solidification

Porosity prediction

Shrinkage

Directional solidification

Defect prediction

Porosity prediction

Entrained air

Early solidification

Oxide formation

Dynamic simulation control

Pour control based on flow dynamics

Complete analysis package

Animations with multi-viewports - 3D, 2D, history plots, volume rendering

Porosity analysis tool

Side-by-side simulation results comparison

Sensors for measuring melt temperature, solid fraction

Particle tracers

Batch post-processing

Report generation
